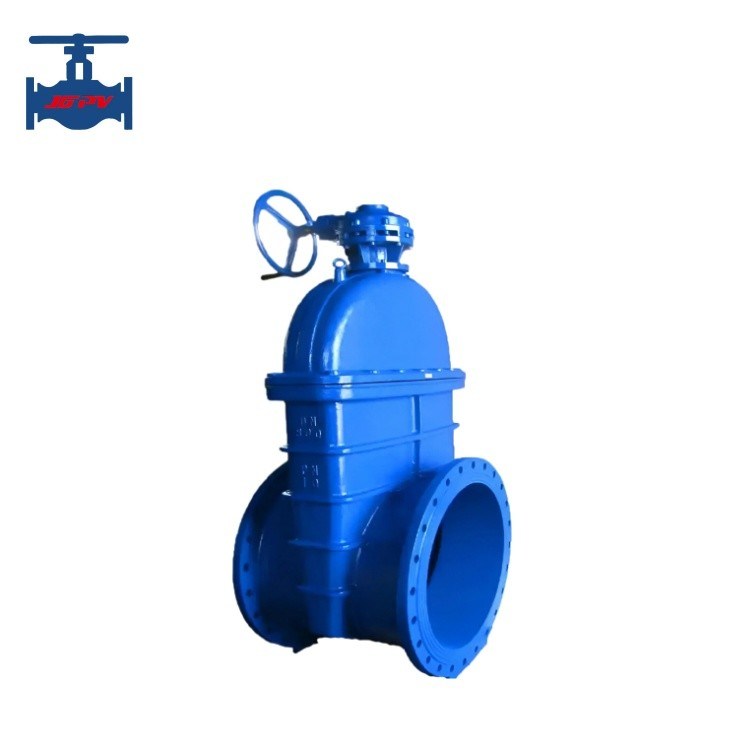

Flanged Gate Valve with Bevel Gear Manual Electric Pneumatic Actuation

Подробная информация о продукции

Place of Origin: China

Фирменное наименование: JGPV

Условия оплаты и доставки

Minimum Order Quantity: 1 SetFlow way: Two way

Packaging Details: Plywood box safety packing

Delivery Time: One week

Payment Terms: L/C,T/T,Western Union

Supply Ability: 500 Set per month

Лучшая цена

Подробная информация о продукции

Описание продукта

Выделить:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                flanged gate valve with bevel gear, manual electric gate valve, pneumatic gate valve with flange


Application::	General	Certificate::	ISO9001, ISO14001
Medium Type::	Water, steam and oil etc.	Function：:	Condensate drain
Connection::	Flange connection	Mounting Type::	Direct Mount
Standard Or Non-Standard::	Standard	Flow way::	Two way
Actuation::	Manual, Electric, Pneumatic,Automatic	Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature	Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

Application::	General
Certificate::	ISO9001, ISO14001
Medium Type::	Water, steam and oil etc.
Function：:	Condensate drain
Connection::	Flange connection
Mounting Type::	Direct Mount
Standard Or Non-Standard::	Standard
Flow way::	Two way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

Flanged Gate Valve with Bevel Gear Manual Electric Pneumatic Actuation

Flanged Gate Valve with Bevel Gear Manual Electric Pneumatic

Product Specifications

Attribute	Value
Application	General
Certificate	ISO9001, ISO14001
Medium Type	Water, steam and oil etc.
Function	Condensate drain
Connection	Flange connection
Mounting Type	Direct Mount
Standard Or Non-Standard	Standard
Flow way	Two way
Actuation	Manual, Electric, Pneumatic, Automatic
Sealing Performance	Sealing
Working Temperature	Normal Temperature And High Temperature
Pressure Application	Normal Pressure
Quality Warranty	18 Months

Product Overview

The gate plate of a gate valve has two sealing surfaces. The most commonly used mode is that the two sealing surfaces of the gate valve form a wedge shape, and the wedge angle varies with the valve parameters.

The gate plate of a wedge gate valve can be made into a whole, called a steel gate plate; It can also be made into a gate that can produce slight deformation to improve its processability and compensate for the deviation of the sealing surface angle during the processing. This type of gate is called an elastic gate.

Soft sealed gate valve is a replacement product of traditional gate valve, which utilizes the compensation effect of elastic gate plate to produce slight deformation and achieve good sealing effect. This valve has significant advantages such as lightweight switch, reliable sealing, good elastic memory, and long service life. It can be widely used in fluid pipelines such as tap water, sewage, construction, food, electricity, medicine, metallurgy, textile, energy systems, etc.

Technical Parameters

Parameter	Value
Diameter nominal DN (mm)	40～600
Pressure nominal PN (MPa)	1.0～2.5
Test standard	Strength test (MPa): 1.5 times of pressure nominal Sealing test (MPa): 1.1 times of pressure nominal
Main Components	Body: Ductile iron Bonnet: Ductile iron Stem: 2Cr13 O type ring: NBR Seal: NBR Gland: Ductile iron Disc: Ductile iron wrapped by NBR
Medium suitable	Water
Working temperature	0℃～80℃
Connection type	Flange

Key Features

High quality rubber is adopted for the internal and external encapsulation of valve, and the connection between rubber and valve is reliable and not easy to fall off
Three "O"-shaped rings are designed on valve rod, reducing friction resistance of switch and decreasing water leakage significantly
Excellent corrosion resistance

Product Images
