Application::	General	Medium Type::	Water, steam and oil etc.
Mounting Type::	Direct Mount	Standard Or Non-Standard::	Standard
Flow way::	two way	Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing	Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure	Quality Warranty::	18 Months

Application::	General
Medium Type::	Water, steam and oil etc.
Mounting Type::	Direct Mount
Standard Or Non-Standard::	Standard
Flow way::	two way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

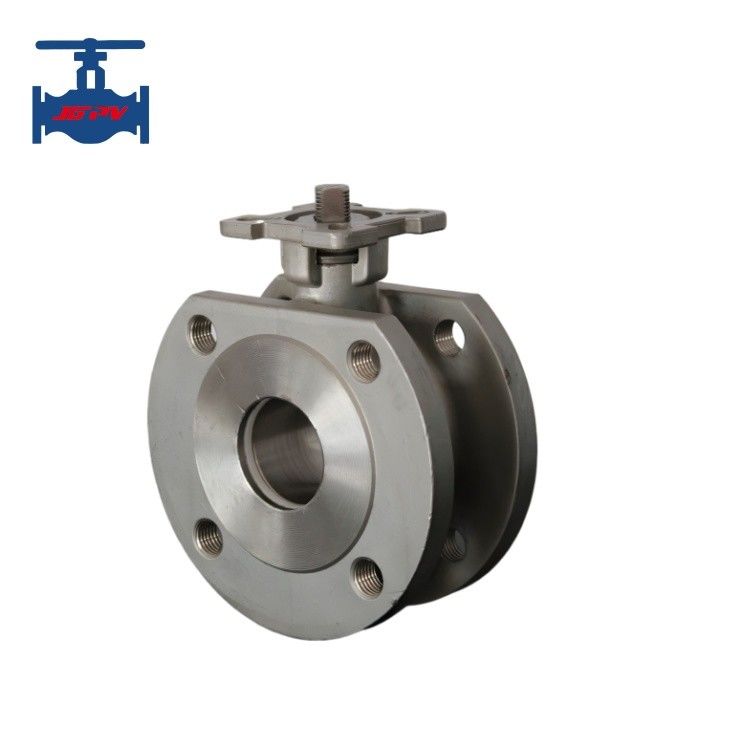

High mounting thin ball valve

Highlight: High mounting thin ball valve

Product introduction:

The thin ball valve is a high-performance manual ball valve that features a double-eccentric and a special oblique cone

elliptical sealing structure. This design resolves the drawback of traditional eccentric butterfly valves, where the sealing

surfaces remain in sliding contact friction during the 0°–10° opening/closing phase. The inclined-plane ball valve ensures

that the sealing surfaces separate instantly upon opening and achieve immediate sealing upon contact when closing,

thereby extending service life and optimizing sealing performance.

Product technical parameters:

Nominal Diameter DN (mm)		15~200
Nominal Pressure PN (MPa)		1.6
Test Pressure (MPa)	Strength (water)	2.4
Test Pressure (MPa)	Enclose (Water)	1.76
Main Components	Body	WCB/CF8/CF8M
	Valve ball	Stainless steel/Carbon steel
	Seat	PTFE
	Packing	Soft graphite
	Shaft	2Cr13
	Handle	Ductile iron
Working temperature		≤150℃
Medium suitable		Water, oil, steam

Product features:

1. Compared with ordinary ball valves, wafer-thin ball valves have significant advantages such as short structural length,

light weight, convenient installation, and material saving. Wafer insulated jacket ball valves offer excellent thermal insulation

performance.

2. The valve seat adopts an elastic sealing structure, ensuring reliable sealing and easy opening/closing. It is equipped

with a fire-resistant structure, enabling reliable operation and good sealing performance in case of fire.

3. An anti-static structure can be provided according to user needs.

4. A 90° switch with a perforated positioning plate is set up, which can be locked as required to prevent misoperation.
